TCH 15

New- 4 TH Generation design

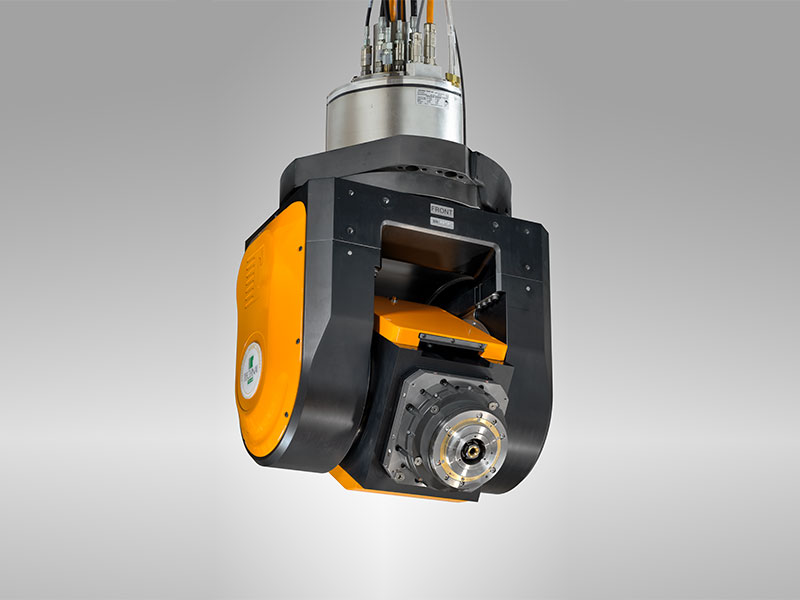

TCH 15 H is the medium-small sized two-axis head with technical contents that reflect the state of the art and the experience of Technai in the design of Direct Drive heads.

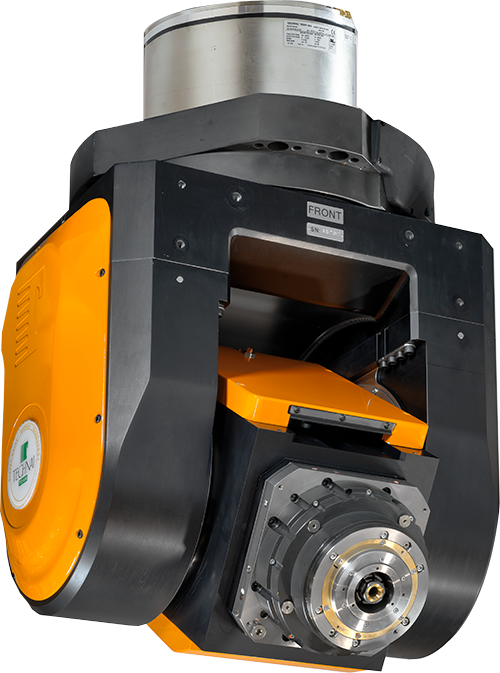

The structure is fork-shaped with a double motor on the A axis – perfectly symmetrical – and it adapts with a few variations to be configured when processing moulds or aluminium and composite components of aeronautical structures

To process moulds with an extended spindle body and an electric spindle of selected quality

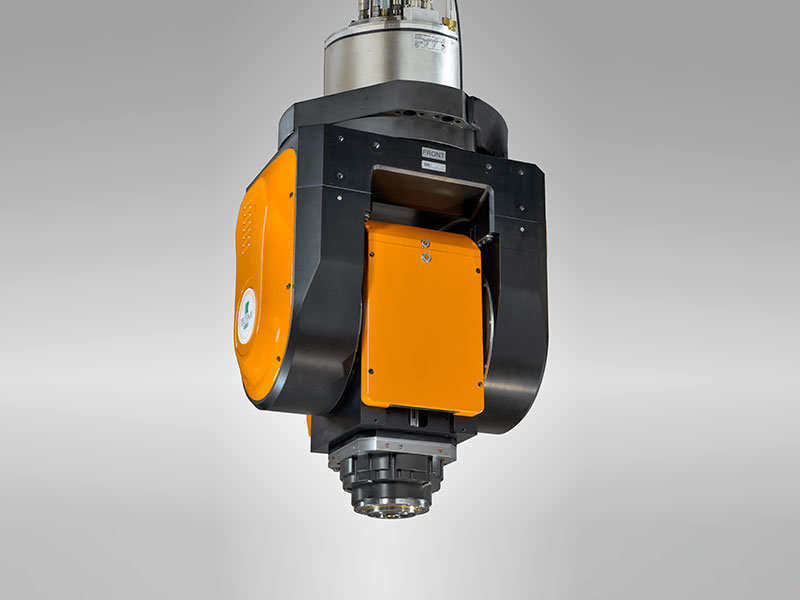

For “aerospace” processing in the most compact configuration and with a high power electric spindle

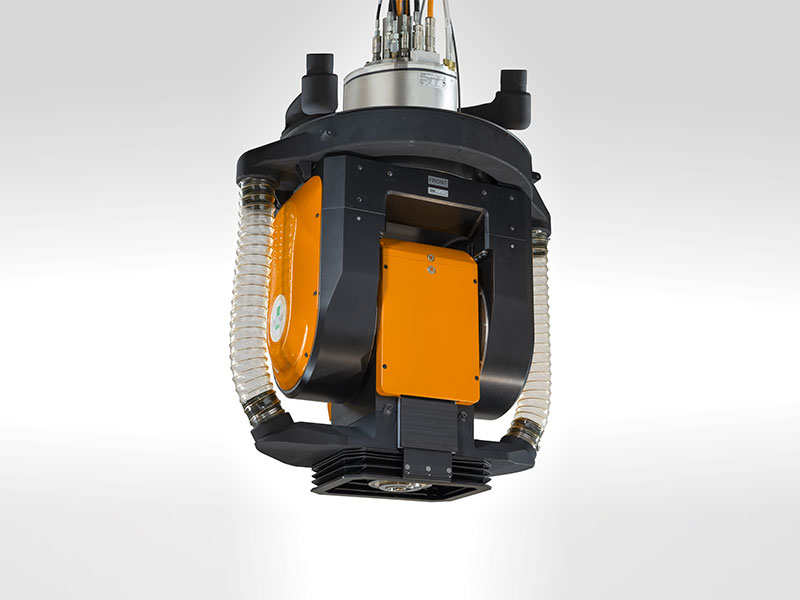

An intake device and telescopic sleeve are available for composite processes

The TCH 15 H head accepts electric spindles with a body of up to D 190mm with a torque range of up to 100 Nm and an HSK A 63 or HSK A100 tool connection It has Direct Drive motors on both axes that allow for optimal performance and fluidity with controlled axes (full 5-axis mode) It has powerful axis clamping devices to allow robust and stable processing with oriented and clamped axes (5-axis 3+2 mode) It is equipped with absolute encoders on both axes (EnDat protocol; DriveCliq, Fanuc)

The TCH 15 H head reflects the experience acquired by Technai with the TCH 19 and TCH 20 models

TCH 15 TECHNICAL DATA		A-AXIS	C-AXIS
Maximum speed	rpm	50	50
Continuous torque	Nm	564	480
Maximum torque	Nm	1152	873
Clamping torque	Nm	4000	4000
Axes Encoder		absolute	absolute
Measurement system precision	arcsec	±3”	±6”
Rotation angle	deg	±115°	±360°
Weight	Kg	490
